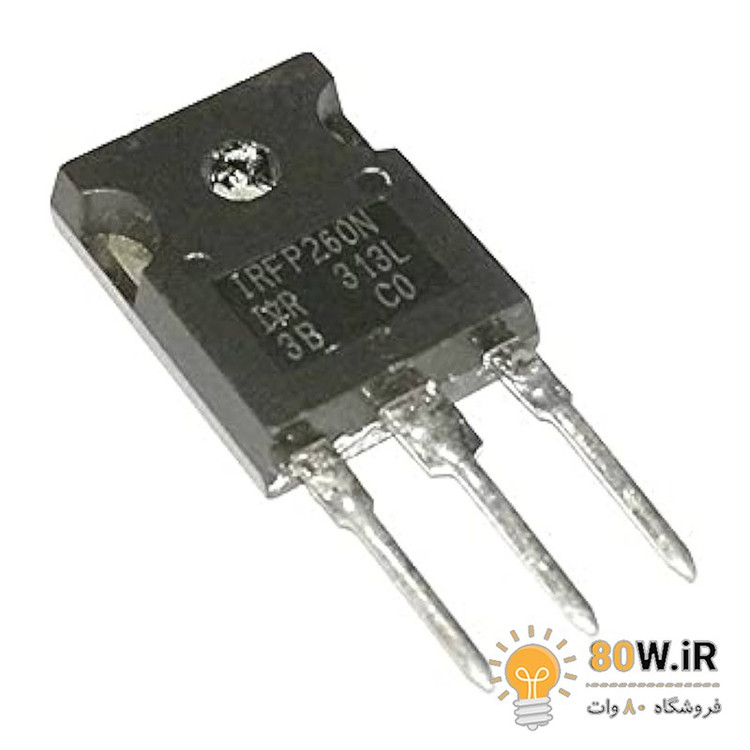

ماسفت IRFP260 نوع N-Channel پکیج TO-247

ماسفت 200 ولت 50 آمپر IRFP260 نوع N-Channel  پکیج TO-247 Specification Product Category: MOSFET Technology: Si Mounting Style: Through Hole Package / Case: TO-247-3 Transistor Polarity: N-Channel Number of Channels: 1 Channel Vds - Drain-Source Breakdown Voltage: 200 V Id - Continuous Drain Current: 50 A Rds On - Drain-Source Resistance: 40 mOhms Vgs - Gate-Source Voltage: - 20 V, + 20 V Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 175 C Pd - Power Dissipation: 300 W Channel Mode: Enhancement Configuration: Single Fall Time: 48 ns Height: 20.7 mm Length: 15.87 mm Product Type: MOSFET Rise Time: 60 ns Transistor Type: 1 N-Channel
