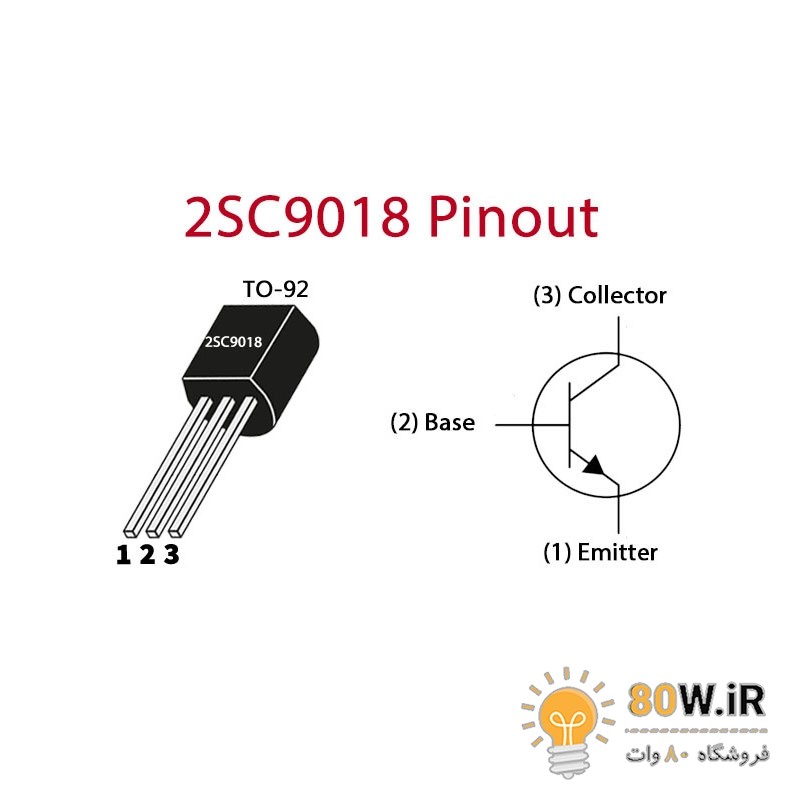

ترانزیستور 2SC9018 پکیج TO-92

ترانزیستور BJT نوع NPN مدل 2SC9018 پکیج TO-92 Specification Type Designator: 2SC9018 Material of Transistor: Si Polarity: NPN Maximum Collector Power Dissipation (Pc): 0.4 W Maximum Collector-Base Voltage |Vcb|: 30 V Maximum Collector-Emitter Voltage |Vce|: 15 V Maximum Emitter-Base Voltage |Veb|: 5 V Maximum Collector Current |Ic max|: 0.05 A Max. Operating Junction Temperature (Tj): 150 °C Transition Frequency (ft): 1100 MHz Collector Capacitance (Cc): 1.3 pF Forward Current Transfer Ratio (hFE), MIN: 28 Package: TO-92
