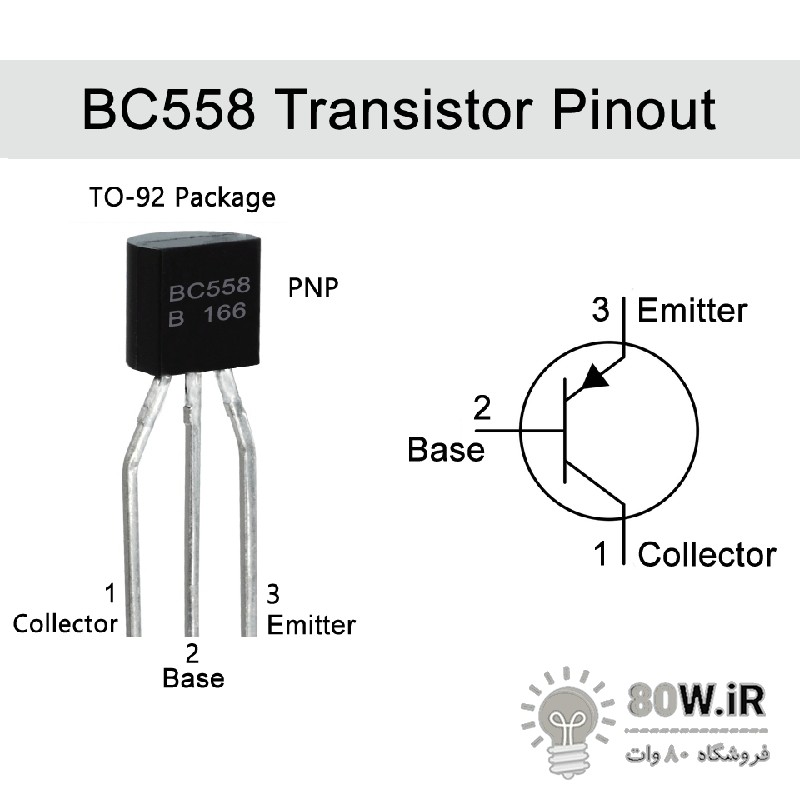

ترانزیستور PNP مدل BC558 پکیج TO-92

Part Number: BC558 RoHS:     RoHS Compliant Details Mounting Style:     Through Hole Package / Case:     TO-92-3 Kinked Lead Transistor Polarity:     PNP Configuration:     Single Collector- Emitter Voltage VCEO Max:     - 30 V Collector- Base Voltage VCBO:     - 30 V Emitter- Base Voltage VEBO:     - 5 V Collector-Emitter Saturation Voltage:     - 250 mV Maximum DC Collector Current:     - 0.1 A Gain Bandwidth Product fT:     150 MHz Maximum Operating Temperature:     + 150 C Series:     BC558 Continuous Collector Current:     - 0.1 A DC Collector/Base Gain hfe Min:     110 DC Current Gain hFE Max:     800 Height:     5.33 mm Length:     5.2 mm Minimum Operating Temperature:     - 65 C Packaging:     Ammo Pack Pd - Power Dissipation:     0.5 W
