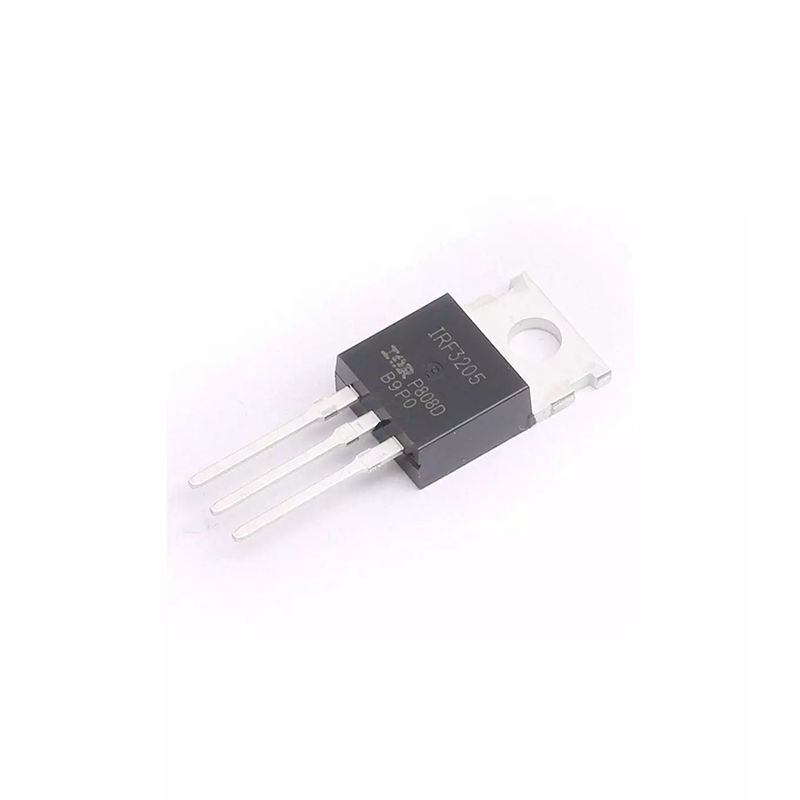

ماسفت IRF3205 پکیج TO-220

ماسفت 55 ولت 110 آمپر IRF3205 پکیج TO-220 Specification Mounting Style: Through Hole Package / Case: TO-220-3 Number of Channels: 1 Channel Transistor Polarity: N-Channel Vds - Drain-Source Breakdown Voltage: 55 V Id - Continuous Drain Current: 110 A Rds On - Drain-Source Resistance: 8 mOhms Vgs - Gate-Source Voltage: 20 V Maximum Operating Temperature: + 175 C Fall Time: 65 ns Height: 8.77 mm Length: 10.54 mm Minimum Operating Temperature: - 55 C Pd - Power Dissipation: 200 W Rise Time: 101 ns Transistor Type: 1 N-Channel Typical Turn-Off Delay Time: 50 ns Typical Turn-On Delay Time: 14 ns
