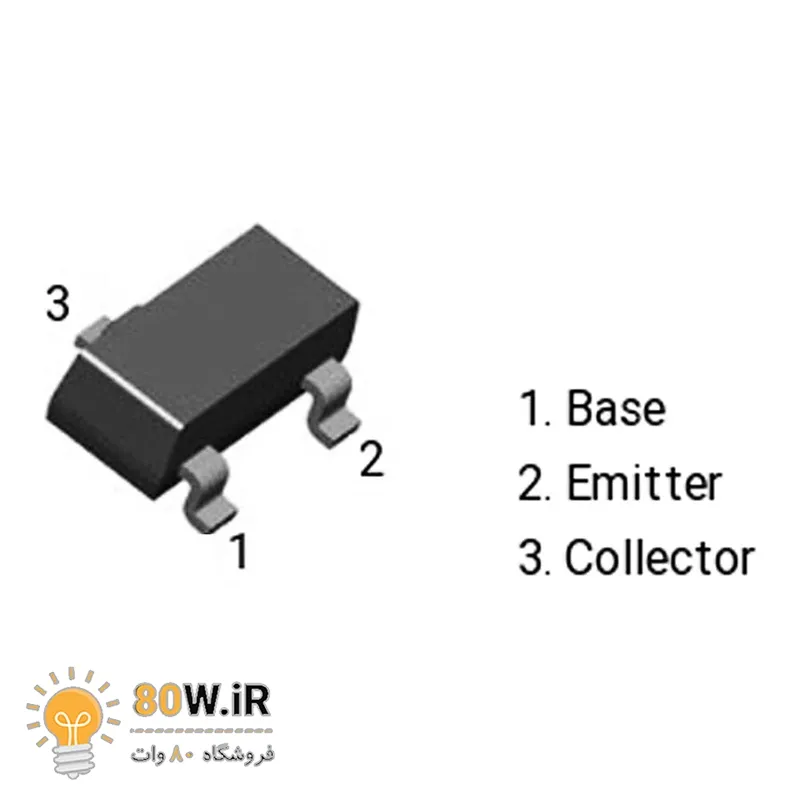

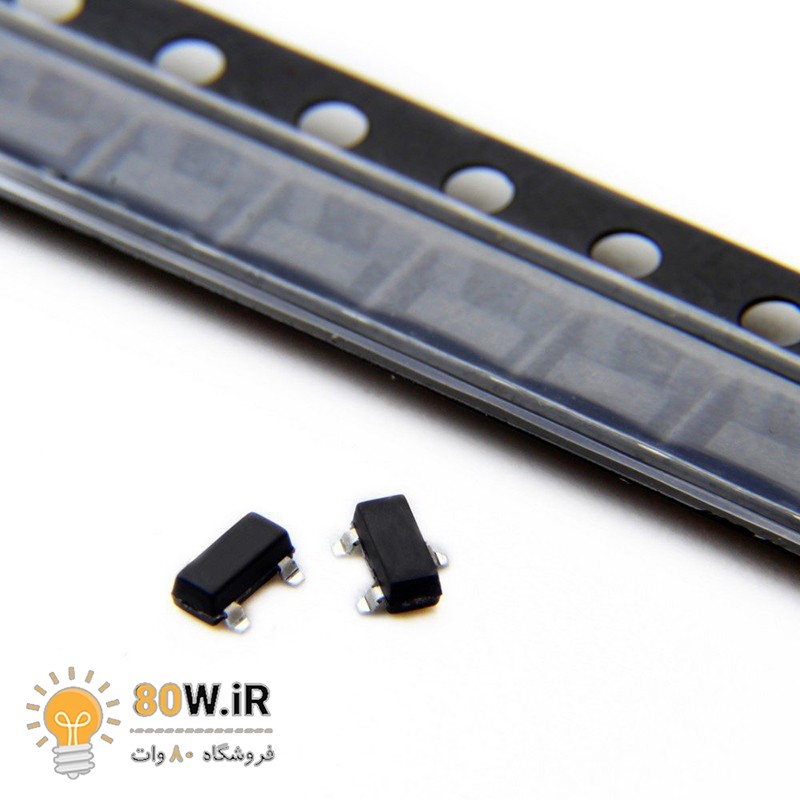

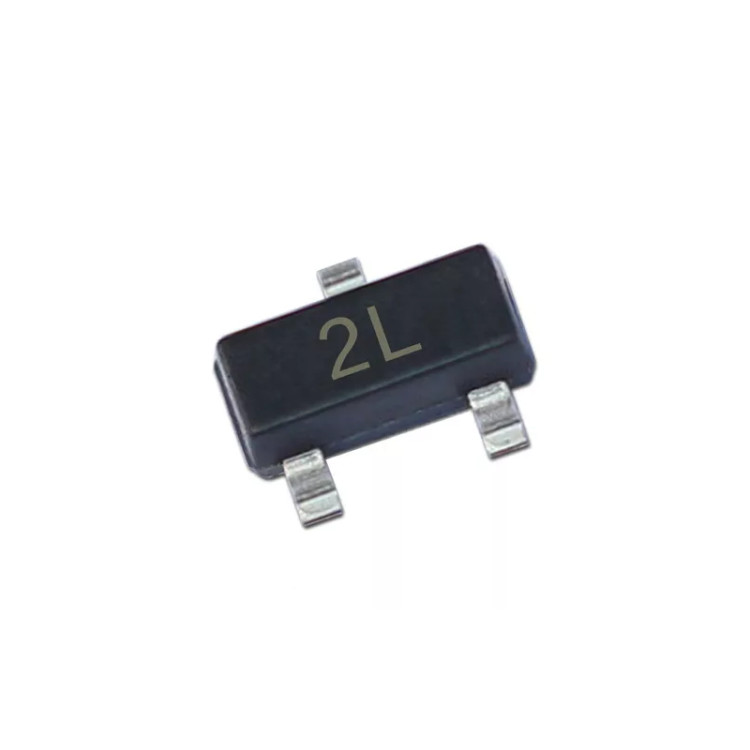

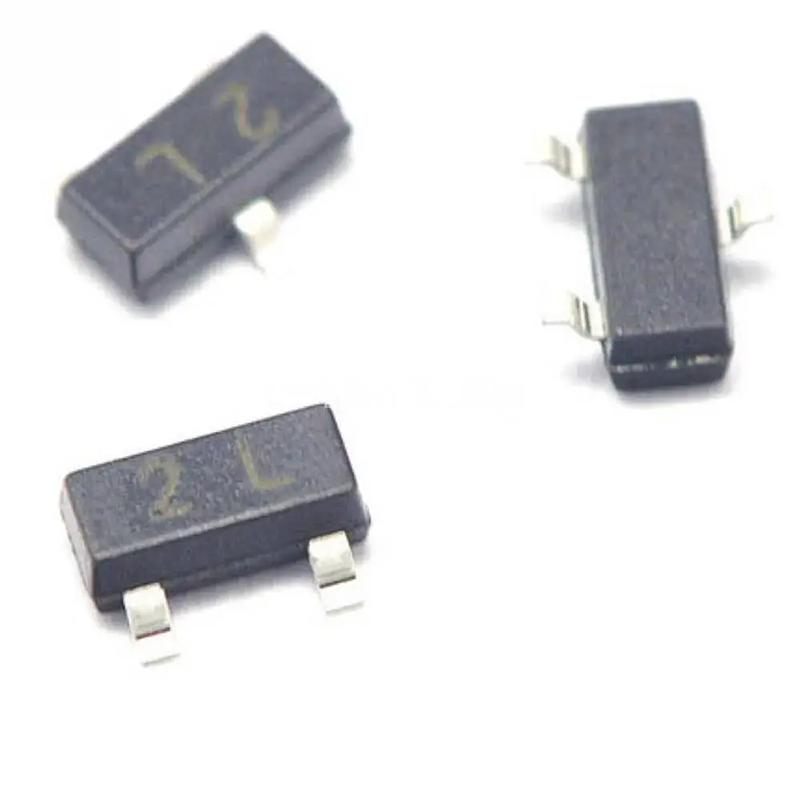

ترانزیستور MMBT5401 smd کد 2L پکیج SOT-23

ترانزیستور پی ان پی (PNP) پکیج اس ام دی (SMD) SOT-23 Specification Type Designator: MMBT5401 SMD Transistor Code: 2L Material of Transistor: Si Polarity: PNP Maximum Collector Power Dissipation (Pc): 0.2 W Maximum Collector-Base Voltage |Vcb|: 160 V Maximum Collector-Emitter Voltage |Vce|: 150 V Maximum Emitter-Base Voltage |Veb|: 5 V Maximum Collector Current |Ic max|: 0.6 A Max. Operating Junction Temperature (Tj): 175 °C Transition Frequency (ft): 100 MHz Collector Capacitance (Cc): 10 pF Forward Current Transfer Ratio (hFE), MIN: 60 Noise Figure, dB: - Package: SOT23
