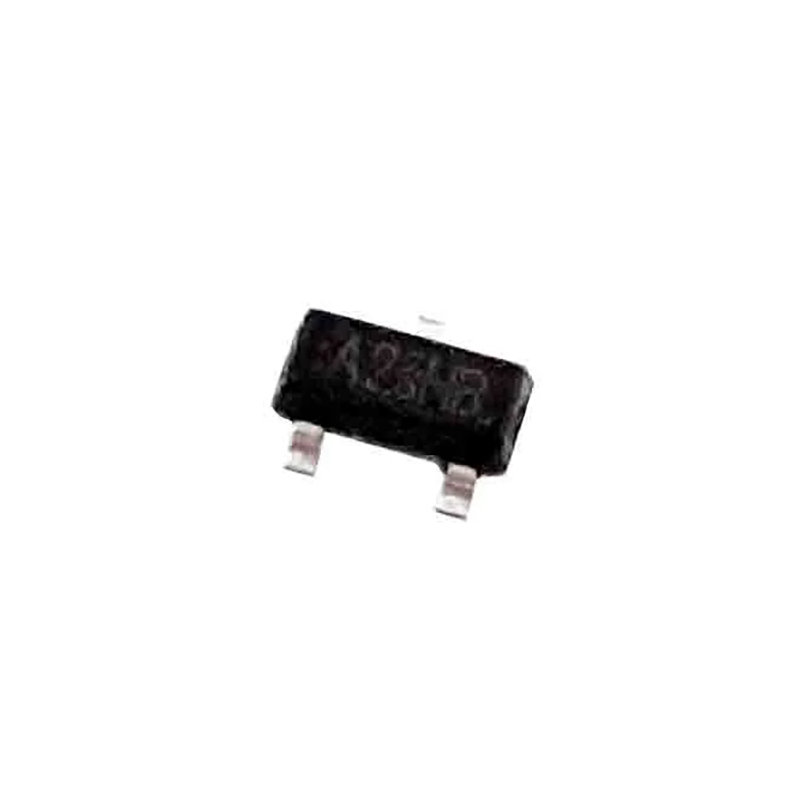

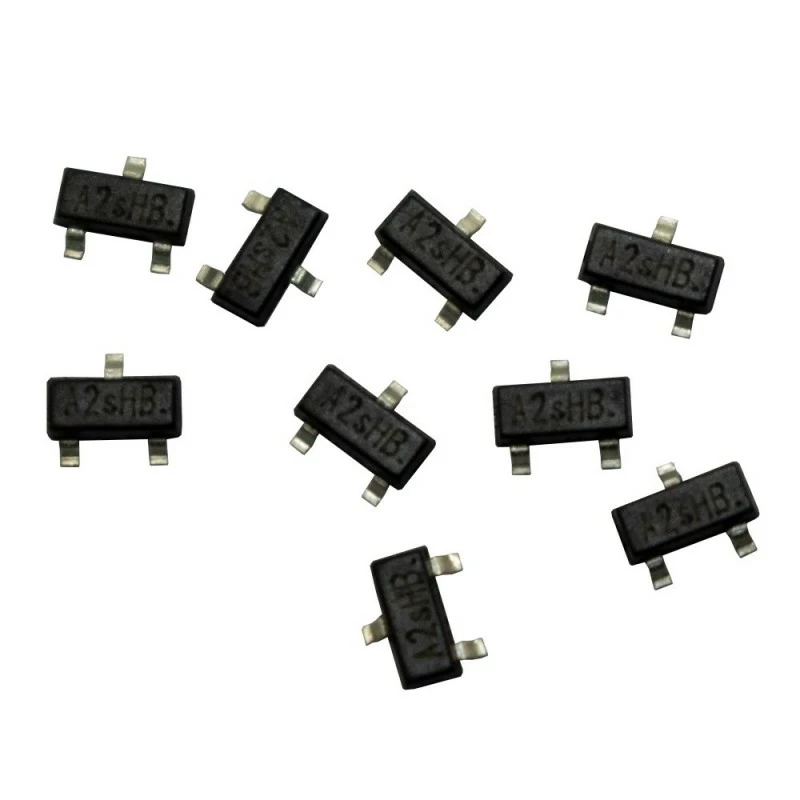

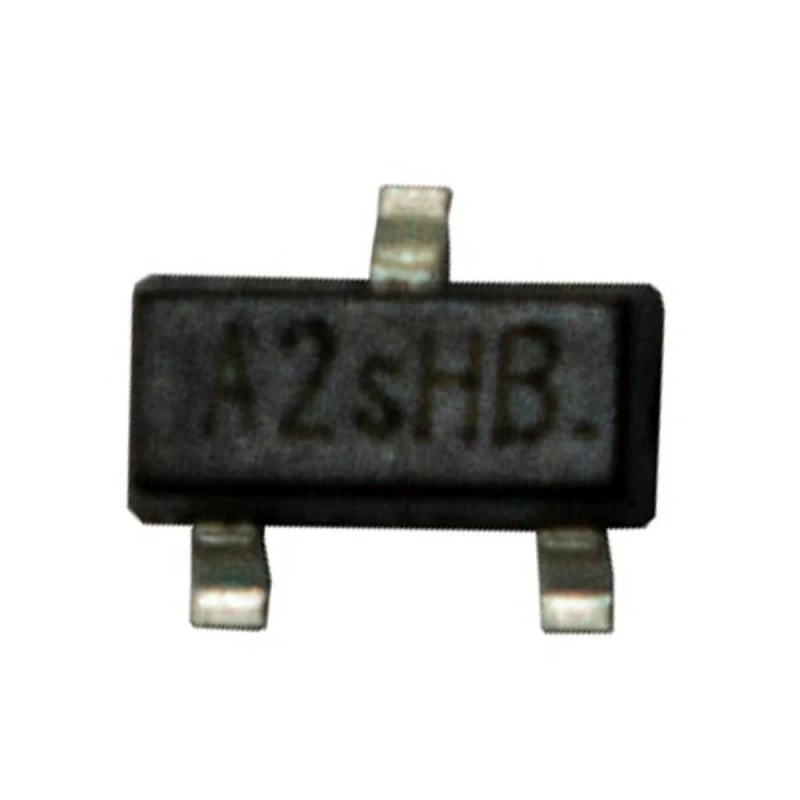

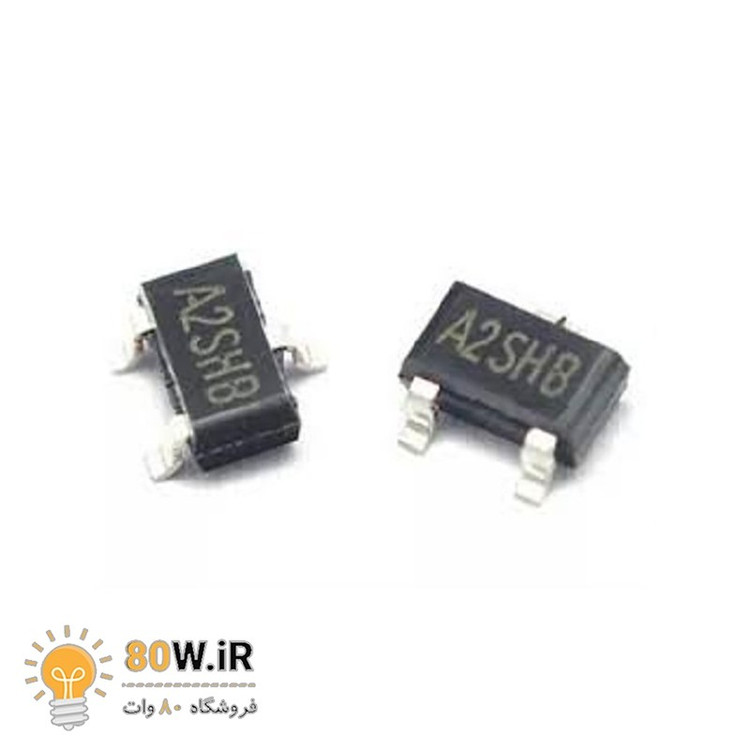

ماسفت Si2302 smd پکیج SOT-23 کد A2SHB

ماسفت Si2302 smd پکیج SOT-23 کد A2SHB Specification Mounting Style: SMD/SMT Package / Case: SOT-23-3 Number of Channels: 1 Channel Transistor Polarity: N-Channel Vds - Drain-Source Breakdown Voltage: 20 V Id - Continuous Drain Current: 2.5 A Rds On - Drain-Source Resistance: 56 mOhms Vgs - Gate-Source Voltage: 8 V Qg - Gate Charge: 5.4 nC Minimum Operating Temperature: - 65 C Maximum Operating Temperature: + 150 C Pd - Power Dissipation: 830 mW Configuration: Single Channel Mode: Enhancement Height: 1 mm Length: 3 mm Product: MOSFET Small Signal Transistor Type: 1 N-Channel Width: 1.4 mm Brand: Nexperia Forward Transconductance - Min: 8 S Fall Time: 34 ns Product Type: MOSFET Rise Time: 23 ns
